Module type for outside attachment chips transportation•discharge conveyor SPALCON- FA
The module type conveyer which was possible to layout of factory chips transportation route by putting the unit of 1m,1.5m and 2m, is flexible and low cost [patent application finished]
Module type discharge conveyer for the outside attachment is providing high cost-performance by variety of combinations |
 |

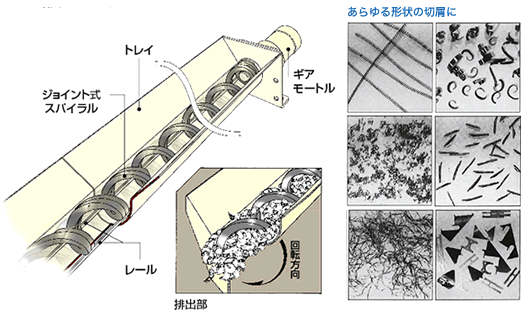

•Multiform use... The turn of the special tough helical spring conveys various chips . |
 |
|
 |
|
自由自在なレイアウトが低コストで実現！

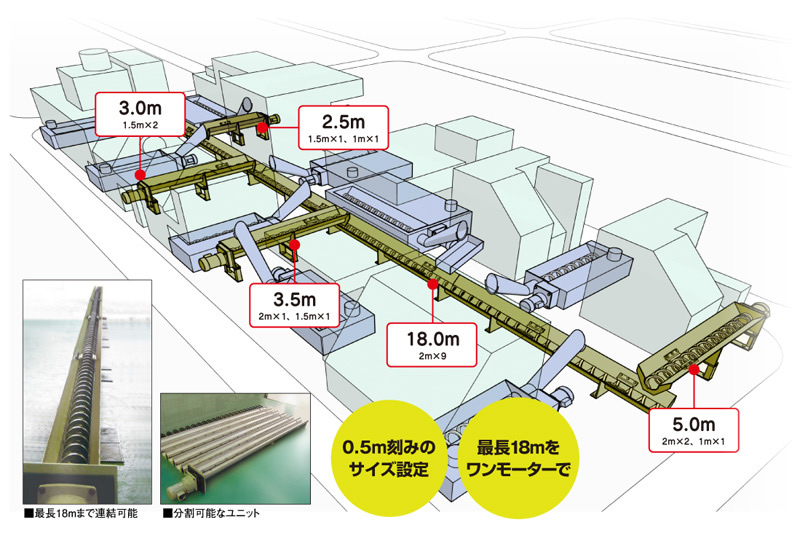

The SPALCON FA can join between spirals. It is possible to set the size of 0.5m serration by combination by the unit of 1m, 1.5m and 2m. Also, special order isn't needed because it can support needs of various length by only standard products. And they can significant cost reduction.
 |

(Another window is opened) |
モジュール構成でコストダウン！

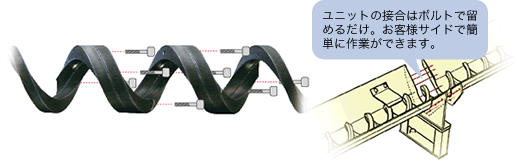

| The spiral is easily jointed with bolts in high accuracy. | |
 |
|

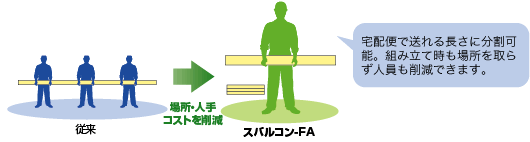

| Because 1 unit is short, its handling is easy | |
 |
|

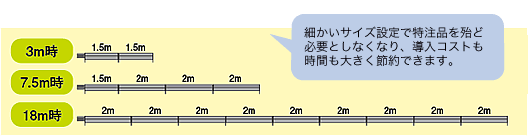

| We can correspond all the way from 1.5m to 18m by the combination of 1m, 1.5m and 2m each units. | |
 |
|
| We can assemble conveyors from 1.5m to 18m by one motor (0.4w or 0.75w) and 1.5voluntary length (with 0.5m serration) combining units of 1m,1.5m and 2m. Also, we can save per use cost and time, because we can reduce the running cost by decreasing motor and not need special order for being able to set its size finely. |  (Another window is opened) |
*The details download PDF from below [specifications / choice list], and refer.
We met the needs of the visitor to want to cost-cut it to be cheap, and to use it in the production of the filter with a little plugging and narrow space!
SOLUTION OF SPALCON
About rationalization of the automatic discharge, slant conveyance, control of the pitch, a bend, we answer the questions such as a unit, conveyor parts.
