PRODUCTS GUIDE

SPIRAL CONVEYOR

SUMMARY OF SPALCON

Productivity of the cutting work is improved by the performance that conventional products do not have!

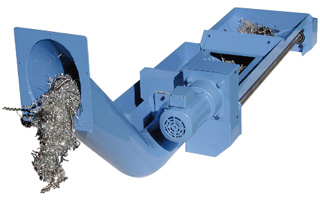

Spalcon is discharge conveyor for inside/outside attachment which can correspond with various needs by free design.

SPALCON

Correspondence each for inside/outside of attachiment by free design
Certain discharge without relations of chips shape.
Long life, maintenance free design
Four kinds conveyer forms corresponde to a machine and the difference of the export direction.
Standardization each unit of conveyor and realize low price, short delivery date.
Retro-Fittable

The wonderful durability, reliability

Refining design of the special spiral adoption

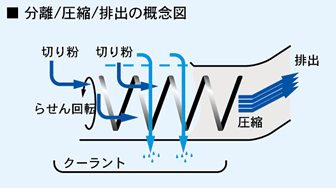

Separation, compression discharge

Compress discharge chips after cut water

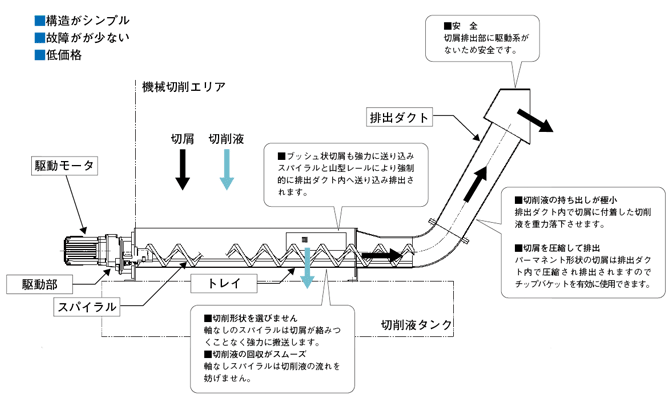

Coreless conveyance

Certain, effective operation

Collective transfer of various chips Separation chips from oil or water

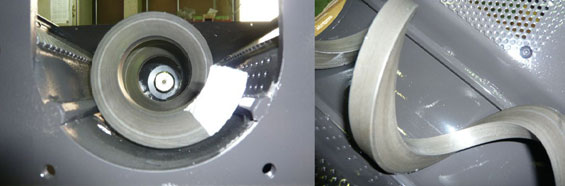

Mountainous rail and spiral make go straight on chips without entanglement,
and the tray abrasion is minimized .

MODEL & USAGE

One of the biggest function is dehydration and compression draining. The chips always carried into conveyor is compressed by natural resistance and is dehydrated with elevation .

We do design development to the environment of the customer from below basic form and standard type. Also, you are available for an individual original design, please refer willingly.

Anterior motor type[such as machining center]
•Direct drive anterior motor[01type] •Anterior motor offset[02type]
モーター前部オフセット型

Back motor [such as lathe type]
•後側モータ直結[03type] •Back motor offset[04type]
モーター後部下方取付型
モーター後部上方取付型

Application

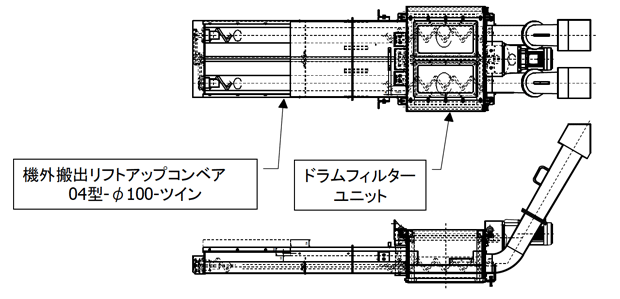

Horizontal machining center
Spalcon M for center trough(with drum filter)

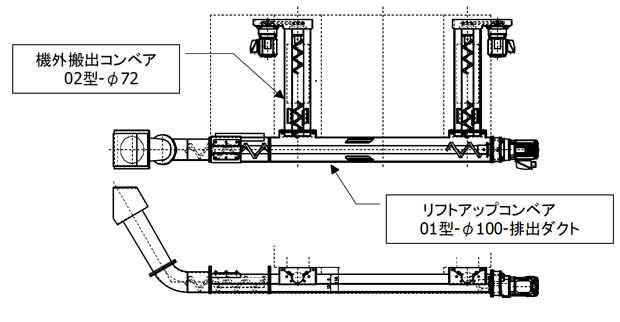

Vertical machining center

SPECS

*The details download PDF catalogue.

SOLUTION CASE EXAMPLE

We met the needs of the visitor to want to cost-cut it to be cheap, and to use it in the production of the filter with a little plugging and narrow space!
SOLUTION OF SPALCON

FAQ

About rationalization of the automatic discharge, slant conveyance, control of the pitch, a bend, we answer the questions such as a unit, conveyor parts.
FAQ about SPALCON
